B Series Short Path Wiped Film Evaporator Molecular Distillation

DETAILS

DESCRIPTION

Molecular distillation is a special liquid-liquid separation equipment. Unlike traditional distillation, it relies on the boiling point difference separation principle, but on the difference of the average free path of different substances. When the liquid mixture flows along the inner wall of the main evaporator and is heated, light and heavy molecules will escape from the liquid level and enter the gas phase. Due to the different free paths of light and heavy molecules, the molecules of different substances move different distances after escaping from the liquid level. After passing through the built-in condensate pipe of the main evaporator, the light molecules reach the condensate pipe and are discharged, while the heavy molecules cannot reach the condensate pipe and are discharged along the mixed liquid, So as to achieve the purpose of material separation.

Working Principle

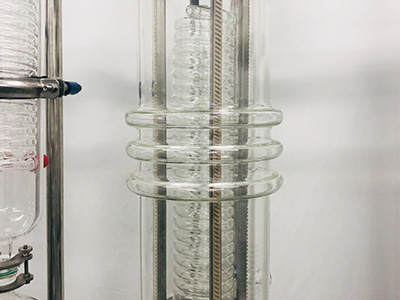

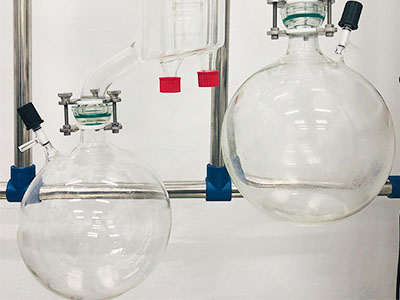

The materials are transported from the feed tank to the jacketed main evaporator. The main evaporator is continuously heated. The built-in scraper evenly scrapes the materials into a layer of flowing liquid film for instant evaporation. The light component materials begin to vaporize and adsorb on the built-in condensing coil, flow into the receiving bottle along the outer wall of the condensing pipe, and the heavy component materials flow into the receiving bottle along the inner wall of the main evaporator.

Application

FEATURES

1. All glass is made of borosilicate GG17

2. Use spherical grinding to keep a high vacuum

3. All interfaces use a spherical shape to ensure vacuum

4. From bio mass to CBD oil or crude to CBD oil we can provide turnkey

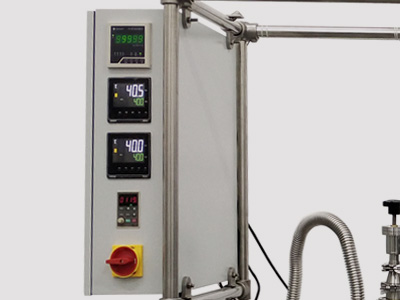

5. The controller box is imported and easy to operate, Digital display speed and temperature

6. The scraper is made of polyphenylene, and the wear resistance is six times that of ordinary PTFE.

7. High evaporation efficiency, process time short

8. The residence time is short, and the thermal sensitive material is not easy to deteriorate andcarbonize

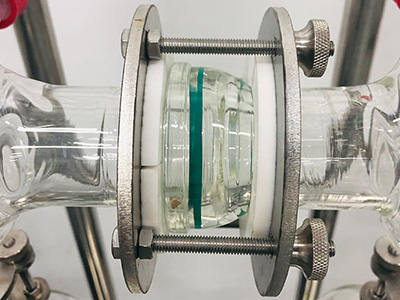

9. The connection port adopts ball milling port design to ensure that molecular distillation isalways in high vacuum

10. Glass material,easy to observe process program

11. Can reach 0.1Pa with diffusion pump and high efficiency distillation

12. The main evaporator adopts jacket design, with high heating efficiency and strong thermalinsulation performance

13.Can continuous feeding and discharging

Precautions for use

1. Fill the cold trap with liquid nitrogen for freezing in advance

2. Equipment heating with oil,high temperature,do not touch with hand,avoid scalding

3. Work temperature from -80℃ to 250°℃ (300C need customized)

4. Check cooling water valve is open normal or not before use

SPECIFICATIONS
