DESCRIPTION
Freeze dryers (lyophilizers) operate on the principle of "ice crystal sublimation," integrating three key stages: pre-freezing, vacuuming, and temperature-controlled sublimation. The equipment typically consists of a drying chamber, a cold trap, a heating system, and a vacuum pump. By gently removing moisture in a low-temperature, low-pressure environment without compromising the material's structural integrity, these machines perfectly preserve the sample's physical structure, biological activity, and chemical properties, making them essential equipment in the field of high-end drying technology. It is for a small-capacity freeze-dryer intended for household use, it is enough to handle various materials, such as fruits, meat, vegetables, herbal medicines, and nutritional supplements etc.
FEATURES
1.Preservation of activity and properties: Drying at low temperatures prevents the inactivation of heat-sensitive substances and maintains the material's original volume and structure.
2.Protection of oxidation-prone components: The vacuum environment minimizes oxygen exposure, effectively protecting substances susceptible to oxidation.
3.Retention of volatile components: Low-temperature processing results in minimal loss of volatile constituents.
4.Inhibition of microorganisms and enzymes: Low temperatures suppress microbial growth and enzymatic activity, better preserving the material's original characteristics.
5.Porous structure and rapid rehydration: The dried product features a sponge-like, porous structure, allowing it to quickly and almost completely return to its original state upon adding water.
6.Prevention of surface hardening: Uniform ice crystal distribution prevents surface hardening caused by the precipitation of inorganic salts.
7.Thorough dehydration for long-term storage: Removes moisture, enabling long-term storage without product deterioration.
8.Low heat source requirements and cost-efficiency: Since the material remains in a frozen state, high-temperature heat sources are unnecessary, making thermal energy utilization more economical.

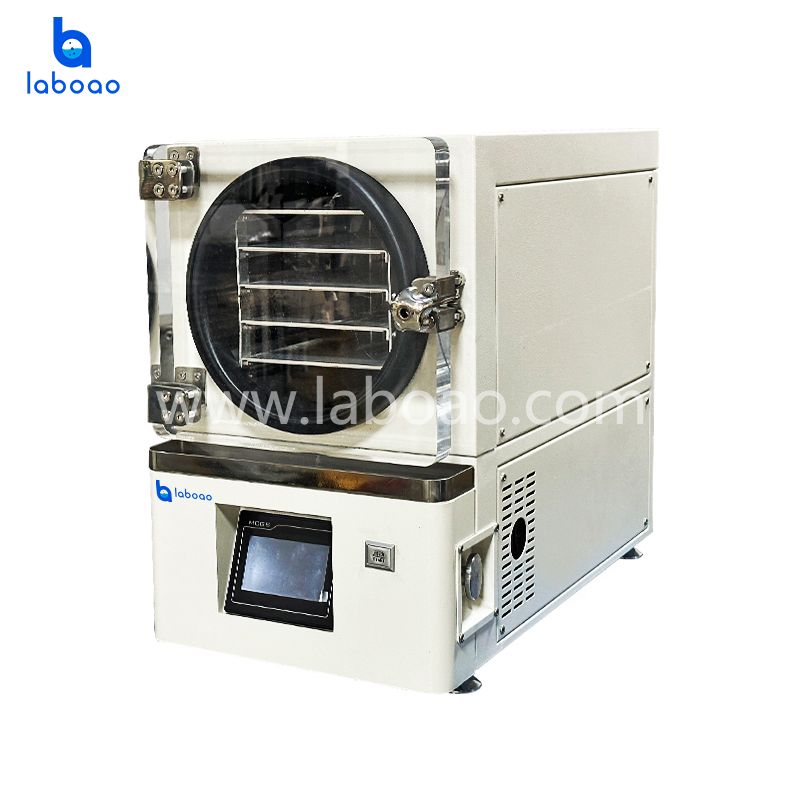

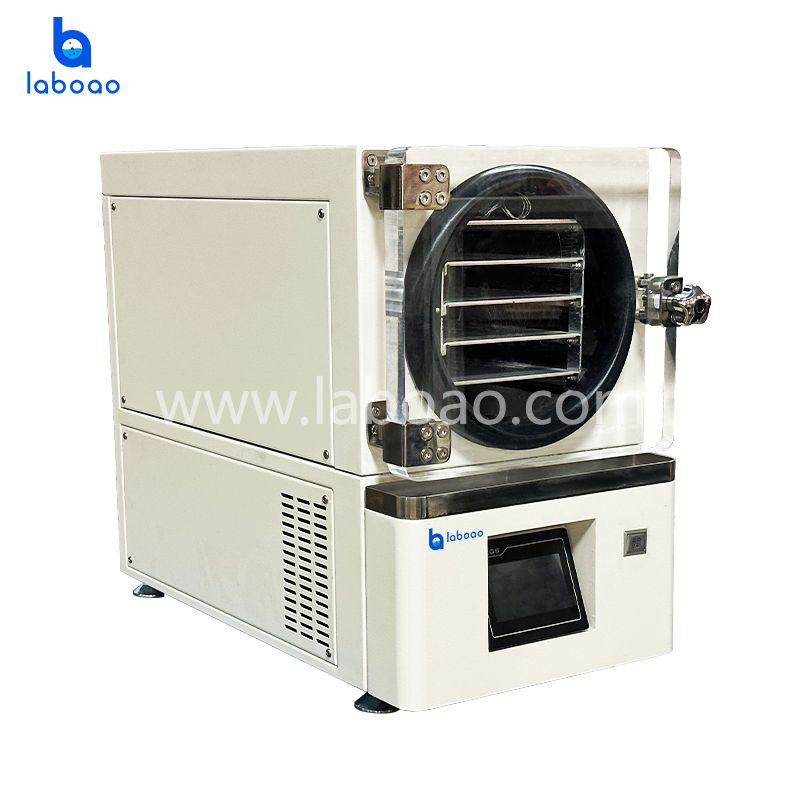

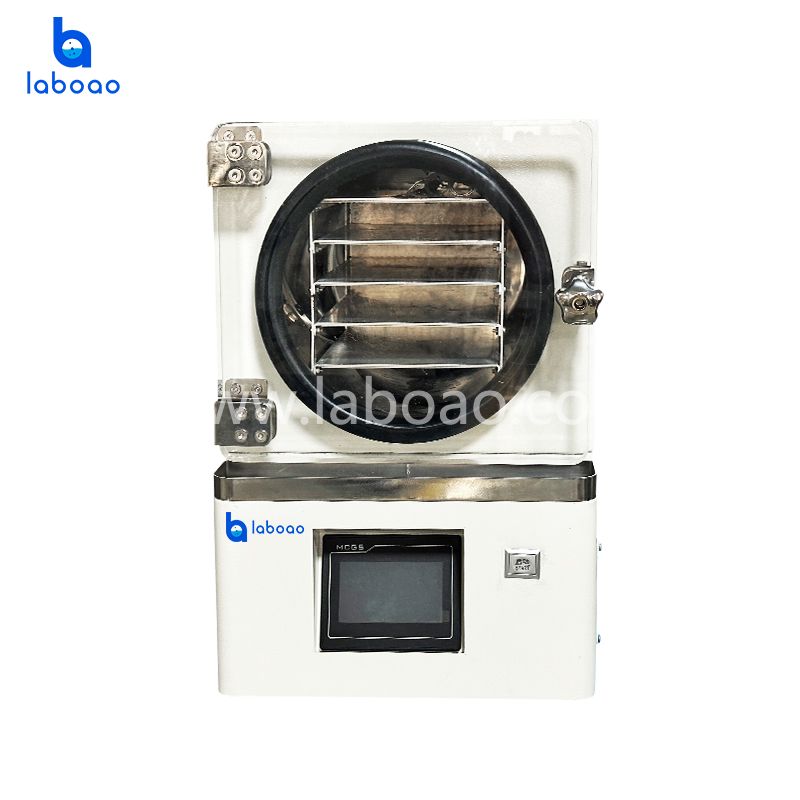

9. Benchtop mini freeze dryer with dimension 375x700x600mm , including built-in vacuum pump, which occupies less space, it is an ideal choice for home freeze drying machine.
SPECIFICATIONS
Model | LFD-Mini |
Effective freeze drying area | 0.2m2 |
Processing ability | 2kg/batch |
Liquid product capacity | ≈ 2L (thickness 10mm) |
Liquid product volume | 1L/S |
Water collection capacity | 2kg |
Number of shelves | 4+1 (radiation layer) |
Shelf size | 175 mm×310 mm |
Shelf distance | 35 mm |
Number of trays | 4 |
Tray size | 170 mm × 305 mm×20mm |
Material of tray | 304 stainless steel |
Minimum temperature of shelf | ≤ -30℃ (no-load) |
Cold trap temperature | ≤ -35℃ (no-load) |
Shelf temperature range | -30℃ ～ +60℃ |
Maximum vacuum degree | ≤2Pa |
Defrosting method | Electric heating defrosting |
Compressor | Imported fully enclosed piston compressor (SECOP) |
Refrigerant | R404a |
Power supply | Single phase 220V 50HZ |
Installed power | 1KW |
Noise | ≤ 62dB |
External dimensions (mm) | 375 width x 700 depth x 600 height |
Total weight (Kg) | 70kg |
Package size (mm) | 475 width x 860 depth x 854 height |
Package Weight (kg) | 90 kg |
Vacuum Pump | Including Built-in vacuum pump |
Optional configuration | ★ Cold trap temperature ≤ -80℃ |
WAAROM VOOR ONS KIEZEN
- Directe verkoop in de fabriek met een concurrerende prijs.
- Premiumkwaliteit met CE- en ISO-certificering.
- Sterke OEM- en ODM-aanpassingsmogelijkheden voor producten.
- Beloof productie en tijdige levering.
- Perfecte klantenservice, gratis productaccessoires.
- 15 jaar ervaring in R&D en productie van small food freeze dryer machine.
ONZE FABRIEK
We hebben een standaard productiewerkplaats en een compleet productieteam. Ze produceren altijd een serieuze en verantwoordelijke houding om elk product te produceren. Ons R & D-team bestaat uit professionele ingenieurs met meerdere aspecten, zoals ontwerpingenieur, technologiespecialist, gekwalificeerde specialist en procescontrolemanager, enz. Onze gekwalificeerde specialisten realiseren strikt het uitgebreide procestoezicht op basis van ons kwaliteitsprocescontrolesysteem, dat het ontwerp van producten bevat , onderzoek en ontwikkeling, testen, productie, kwaliteitsinspectie en verpakking.
KLANTGEVALLEN
Onze laboratoriuminstrumenten en -apparatuur worden gebruikt in veel wetenschappelijke laboratoria, wetenschappelijke onderzoeksinstellingen, universiteiten, ziekenhuizen, centra voor ziektebestrijding en andere instellingen, en worden gecombineerd met vele bekende biofarmaceutica, nieuwe energie, elektronicabedrijven, voedselverwerking, milieubescherming, enz. Samenwerking tussen bedrijven, onze stabiele en betrouwbare producten worden geëxporteerd naar meer dan 120 landen over de hele wereld en worden door hen zeer erkend, geloof LABOAO, we groeien samen!
