6-7kg Freeze Dryer Lyophilizer For Fruits And Vegetables

6-7kg Freeze Dryer Lyophilizer For Fruits And Vegetables 6-7kg Freeze Dryer Lyophilizer For Fruits And Vegetables 6-7kg Freeze Dryer Lyophilizer For Fruits And Vegetables 6-7kg Freeze Dryer Lyophilizer For Fruits And Vegetables 6-7kg Freeze Dryer Lyophilizer For Fruits And Vegetables 6-7kg Freeze Dryer Lyophilizer For Fruits And Vegetables
Household freeze-drying equipment, also known as household-type freeze dryer, home freeze dryer, is a small vacuum freeze dryer. Apply to the family, online shop a small amount of freeze-dried use, widely adapted to fruits, meat, vegetables, Chinese herbal medicines, health products, etc. freeze-drying.
  • ModelLFD-6
  • MerkLABOAO
  • StockIn Stock
  • CustomizedOEM/ODM
  • CertificationCE
  • Min. Order1 unit
  • HavenAny port in China
  • PakketPlywood case package
NAVRAAG
Betaling We ondersteunen ook L/C、D/A、D/P、Western Union、MoneyGram、Ontdek betalingen voor offline bestellingen.

VIDEO

DETAILS

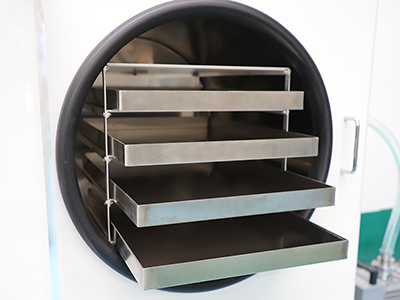

6-7kg Freeze Dryer Lyophilizer For Fruits And Vegetables detail - Stainless steel material trays and drying chamber.
Stainless steel material trays and drying chamber.

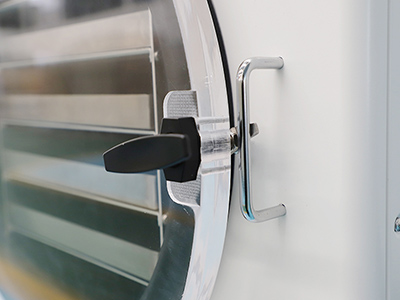

6-7kg Freeze Dryer Lyophilizer For Fruits And Vegetables detail - Transparent visible plexiglass door,can observe the lyophilization process of materials directly.
Transparent visible plexiglass door,can observe the lyophilization process of materials directly.

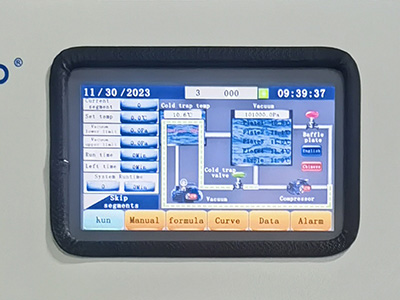

6-7kg Freeze Dryer Lyophilizer For Fruits And Vegetables detail - LCD touch screen, one button start. PLC system control, can set up programs and save different freeze drying formulas, one touch to run setted program for different samples.
LCD touch screen, one button start. PLC system control, can set up programs and save different freeze drying formulas, one touch to run setted program for different samples.

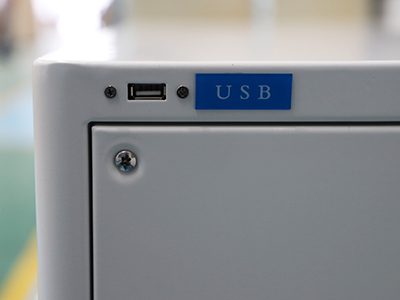

6-7kg Freeze Dryer Lyophilizer For Fruits And Vegetables detail - USB interface can download freeze drying data for record.
USB interface can download freeze drying data for record.
6-7kg Freeze Dryer Lyophilizer For Fruits And Vegetables detail - Sturdy and stable universal wheel, easy to move.
Sturdy and stable universal wheel, easy to move.

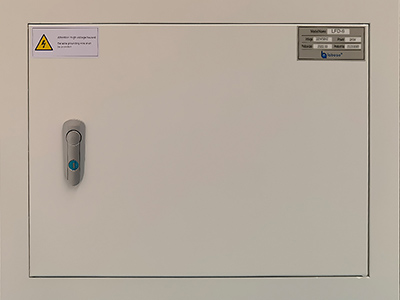

6-7kg Freeze Dryer Lyophilizer For Fruits And Vegetables detail - One touch to open the control box, easy to maintenance.
One touch to open the control box, easy to maintenance.

DESCRIPTION

Lyophilization or freeze drying is a process in which water is removed from a product after it is frozen and placed under a vacuum, allowing the ice to change directly from solid to vapor without passing through a liquid phase. The process consists of three separate, unique, and interdependent processes; freezing, primary drying (sublimation), and secondary drying (desorption).


FEATURES

1. In-situ pre-freeze drying.

2. Temperature adjustable, controllable production process.

3. 30 sections can be set, the freeze dryer can modify the program parameters during the running process, and record the vacuum drying curve and data online.

4. Touch screen, you can set the power-on password to display the drying curve.

5. The square tray is not easy to be deformed, easy to operate and easy to clean.

6. The drying chamber adopts a high light transmissive colorless transparent plexiglass door, which can clearly observe the change process of the material during the operation.

7. Optional configuration of the inflation valve, which can be filled with dry inert gas.


SPECIFICATIONS

Model

LFD-6

Freeze-dried Area(M2)

0.6M2

Handling Capacity(Kg/Batch)

6~8Kg/Batch

Cold Trap Temperature(℃)

＜-35℃（No-load）

Maximum Ice Capacity/Water Catch(Kg)

6.0kg

Layer Spacing(mm)

50mm

Tray Size(mm)

430*315*30mm 4mmPcs

Ultimate Vacuum（Pa）

15pa（No-load）

Vacuum Pump Type

2XZ-4

Pumping Speed(L/S)

4L/S

Noise(dB)

64dB

Power(W)

2000W

Power Supply

220V/50HZ or Custom

Weight(Kg)

120Kg

Dimension(mm)

640*680*1180mm


Standard parts list:

Model

LFD-6

Host machine

1set

Tray

4pcs

Vacuum pump

1set

Vacuum pump pipe

1pc

Vacuum clamp

2sets

vacuum grease

1box

English manual

1pc

Certification

1pc
