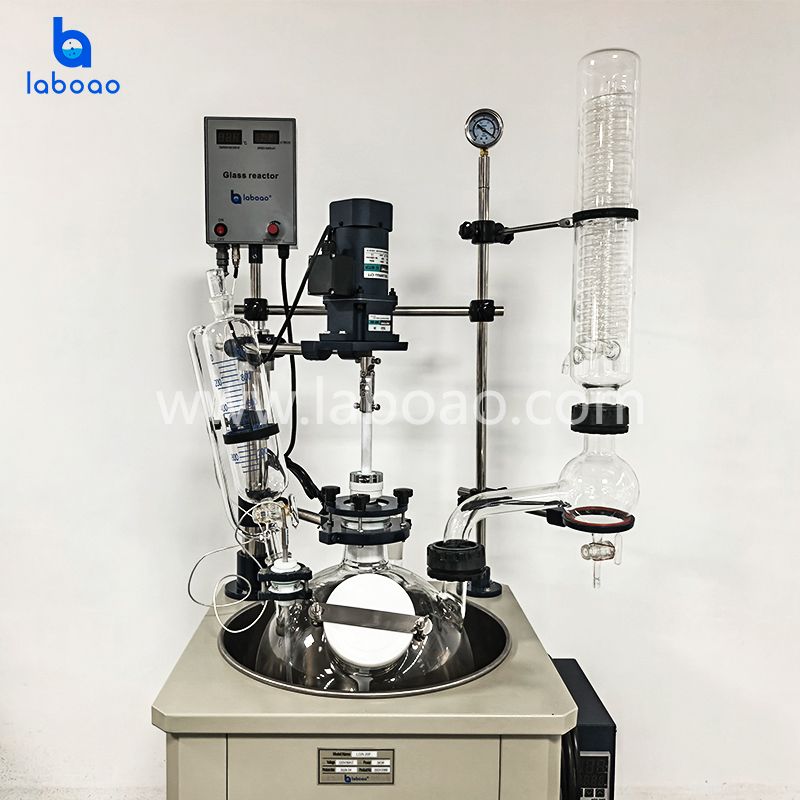

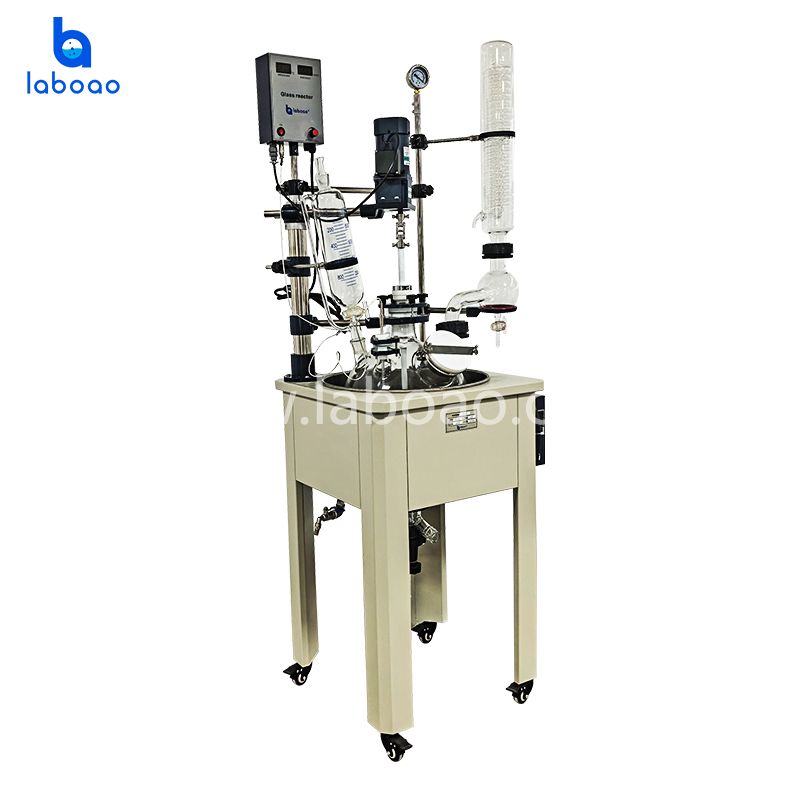

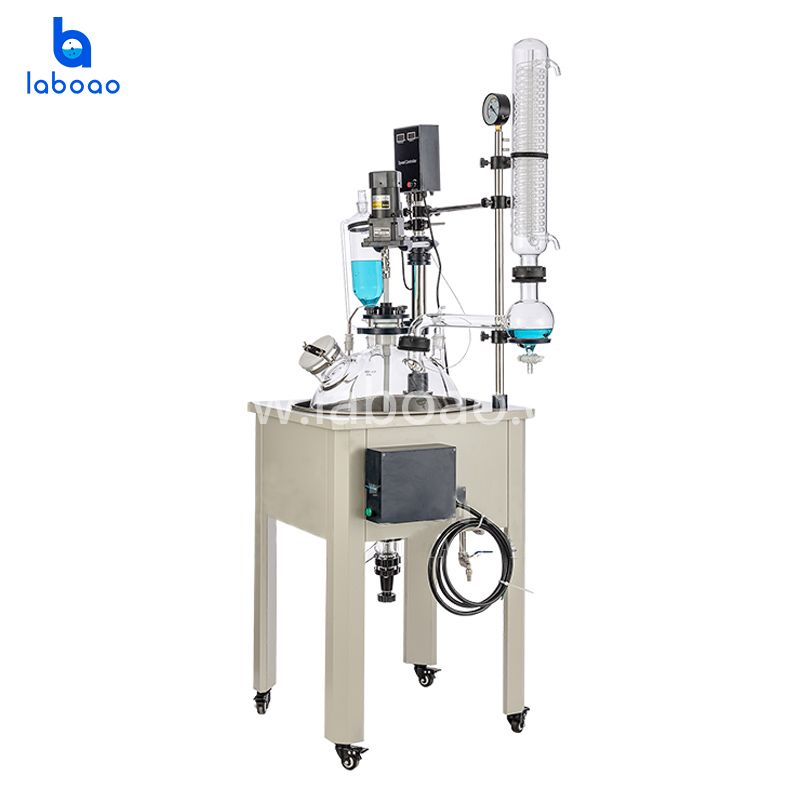

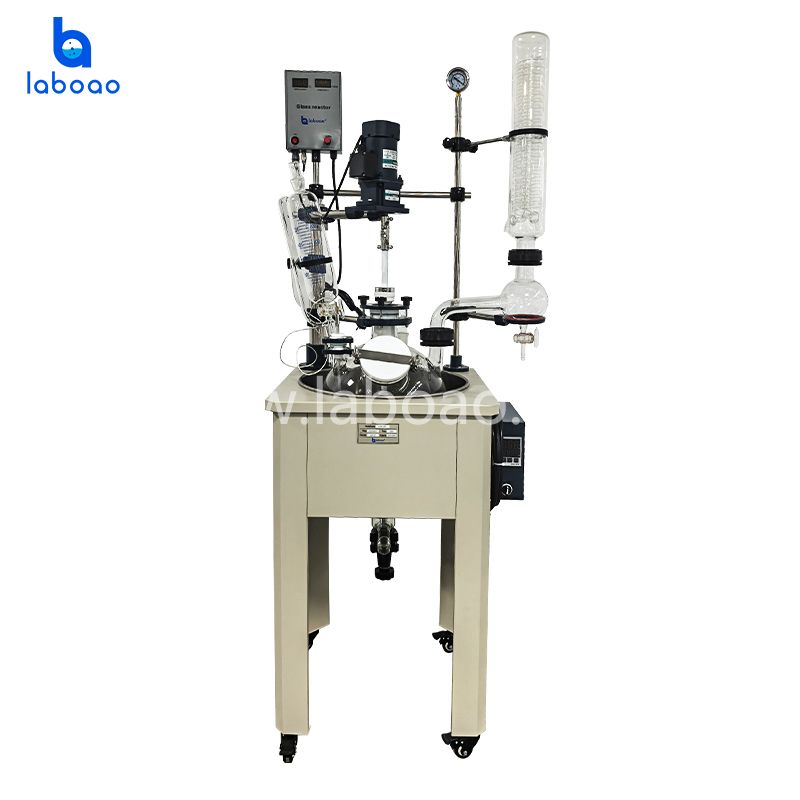

20L Single Layer Glass Reactor
Single layer glass reactor is an equipment which is a collaboration of vacuum state, distillation, reflux, stirring, oil/water heating, heating mantle. It can do all kinds of biochemical reactions and synthesis reactions at a constant temperature condition. It is also a colsed system on the whole.
- ModelLGR-20F
- MerkLABOAO
- StockIn Stock
- CustomizedOEM/ODM
- CertificationCE
- Min. Order1 unit
- HavenAny port in China
- PakketPlywood case package
Betaling
We ondersteunen ook L/C、D/A、D/P、Western Union、MoneyGram、Ontdek betalingen voor offline bestellingen.
DESCRIPTION
Single glass reactor inner placed reaction solvent which can be stirred, single layer glass reaction kettle is heated by computer control oil bath or electric heating. At the same time, it can be worked at atmospheric pressure or vacuum state, to control the reaction solution reflux and distillation, it is the ideal equipment for modern synthesis chemical, biological pharmaceuticals and making new materials, used for preparation experiment and production equipment.
FEATURES
1. Frequency control, AC induction motor, speed digital display constant, brushless, no spark, safe and stable, it can work continuously;
2. Supporting glass using GG3.3 high boron silicon material production, has a good chemical, physical properties; big bottle design, hand out cleaning;

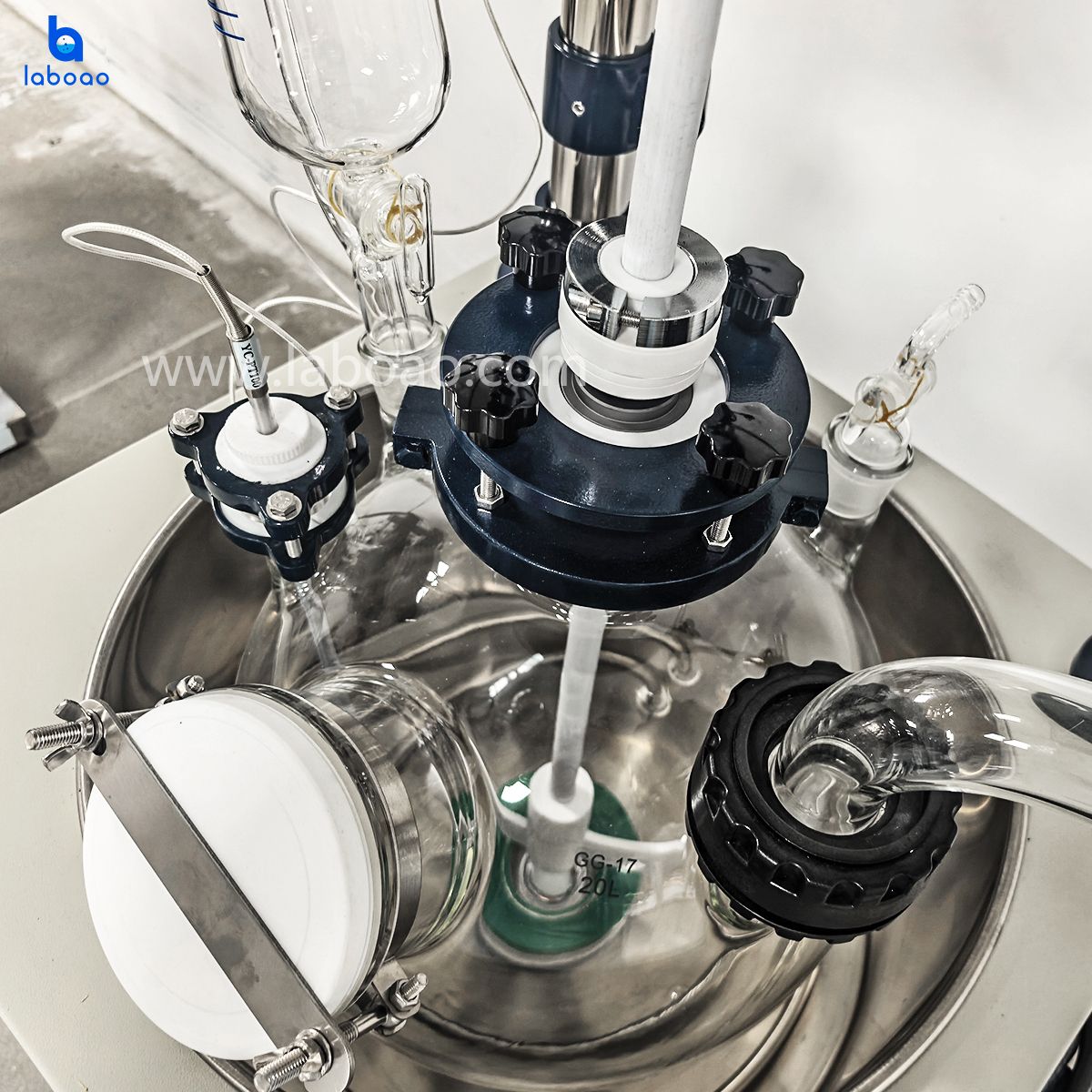

3. PTFE (Ceramic) mechanical component sealing, proprietary technology, it can get the best vacuum degree in the market among the similar products;
4. Overall stainless steel frame structure (foot connecting parts like Tee and four-way valve are all stainless steel), compact and solid, stable and reliable without shaking when mixing;
5. Casters with brake fixed, it is convenient and reliable for mobile use;

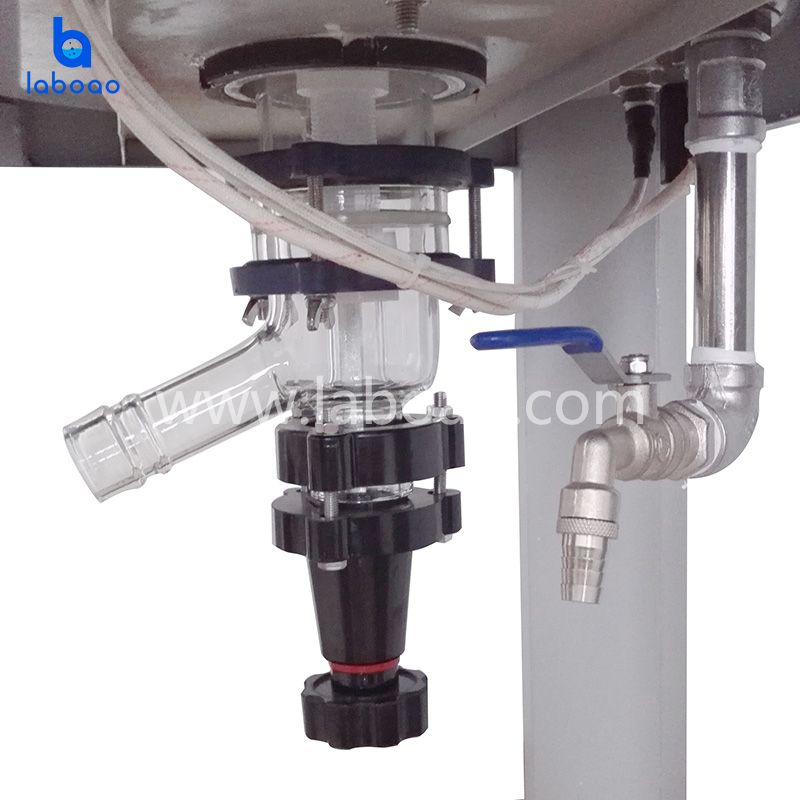

6. The PTFE discharge valve without dead corner, solid material/liquid material can be easily released from the bottom;
7. Computer controlled thermostatic oil bath, the intelligent PID control, temperature control is accurate and convenient;
8. Integral structure is scientific design and beautiful appearance, convenient for operation;
9. Explosion-proof series available.
( We can add the cooling coil and an anti-explosion device according to user's needs)
SPECIFICATIONS
Model | LGR-20F | |
Kettle volume | 20L spherical | |
Voltage/frequency | 220V/50HZ | |
Stirring power | 90W， 1/3 | |
Heating power | 5KW | |
Stirring speed | 0-450rpm/min | |
Bath temperature range | room temperature to 180℃ | |
Temperature accuracy | ±1℃ | |
Vacuum degree | 0.098Mpa | |
Kettle size | Φ355mm | |
7Port of the kettle | Stirring port | Φ80mm flange port |
Condenser reflux port | 50#ball mill port | |
Constant pressure funnel port | 34# standard port | |
Relief port | 34# standard port | |
Temperature measuring port | Φ45 flange port | |
Solid feeding port | Φ125mm flange port matched with PTFE cover | |
Baiting port | Φ80mm flange port | |

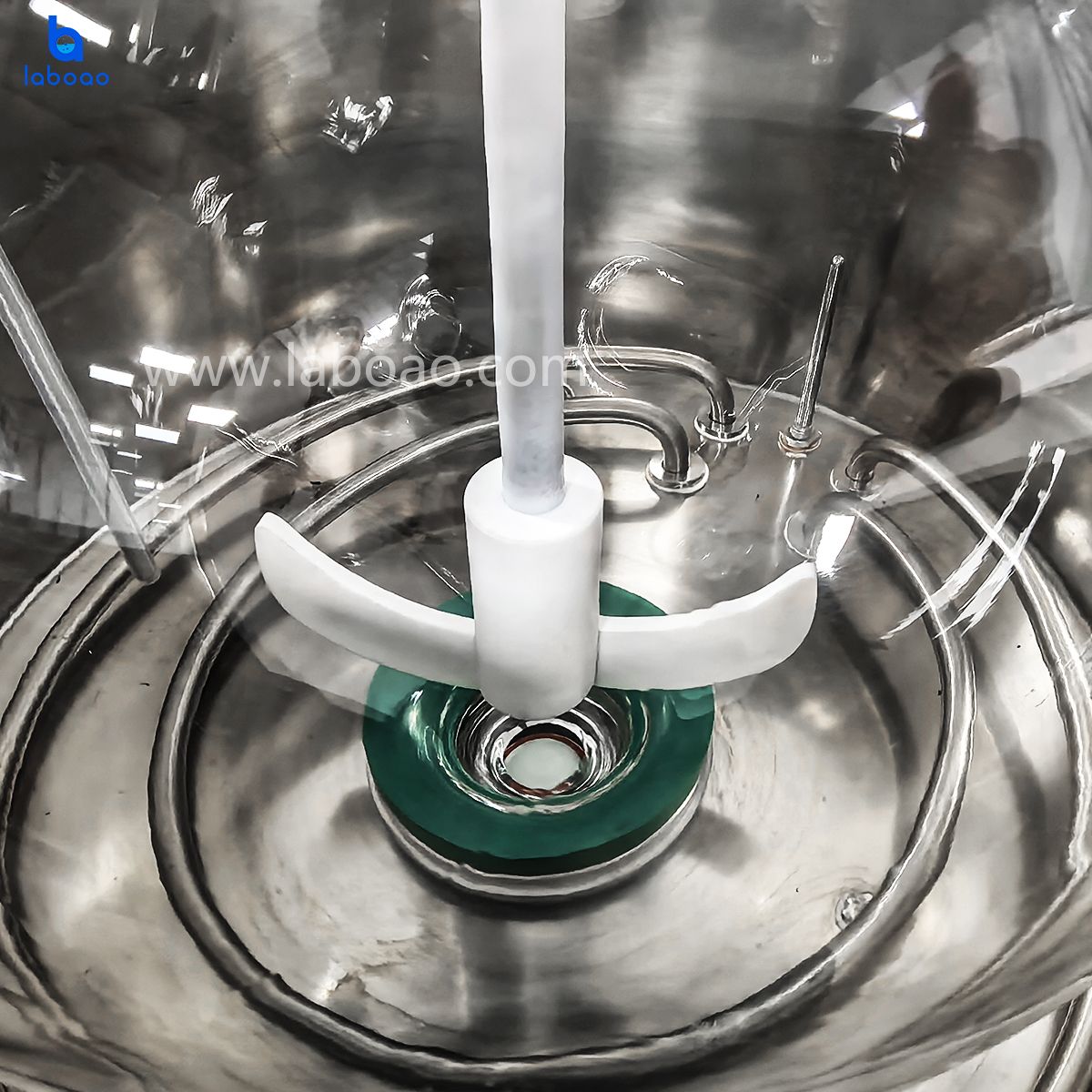

Stirring paddle | Φ17*650H(mm), leafing 190mm | |
Condenser size | Φ100*600H(mm)，down with Φ60 flange port | |
Condenser area | 0.4㎡ | |
Reflux elbow | upper with Φ60 flange port，left with 50# ball mill plug | |
Constant pressure funnel | 1L，upper with 29# standard port match with glass plug，down with 34# standard plug | |
Relief valve | 34# standard plug valve, vent nozzle (pagoda connector), outer diameter 12mm | |
Baiting valve | Φ80 flange port，Φ33mm baiting port，inclined discharging port (pagoda connector)Φ34mm, from the floor 350mm | |
Vacuum suction nozzle | padoga connector,outer diameter 12mm | |
In and out circulation nozzle of condenser coil | padoga connector,outer diameter 15mm | |
Pot bravery dimension | Φ450*260H(mm) | |
Overall dimension (W*L*H) | 810*540*1960mm | |
Net weight | 48kg | |
Packing dimension | 1200*740*920mm, 0.82m³ | |
Packing weight | 93kg | |
