200L Jacketed Glass Reactor

High borosilicate glass reactor vessels with bottom valve Glass dome with ports for inlet, solid feed, vacuum, etc. PTFE coated stirrer, mechanical seal Adjustable speed stirrer drive CE and ISO certificate.

ModelLGR-200L
MerkLABOAO
HavenAny port in China
PakketPlywood case package

NAVRAAG E-MAIL

Betaling We ondersteunen ook L/C、D/A、D/P、Western Union、MoneyGram、Ontdek betalingen voor offline bestellingen.

VIDEO

DETAILS

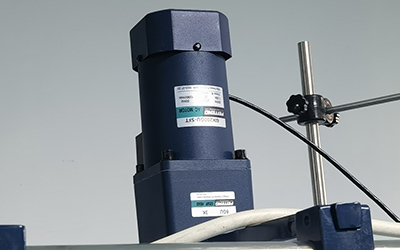

: Low speed booster motor, adjust speed 0-280 rpm.

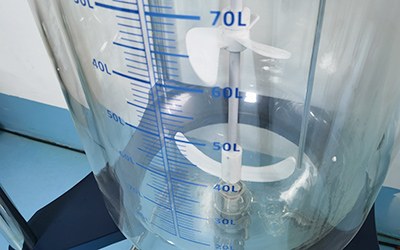

: High borosilicate double layer glass reaction, 3 layer PTFE stirring anchor.

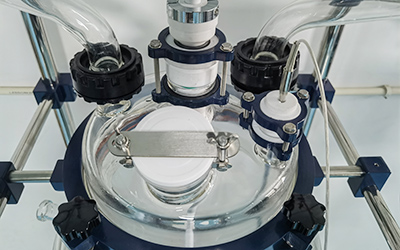

: Total 6 ports, for motor, solid adding, temperature sensor, condenser, feeding tank, air release.

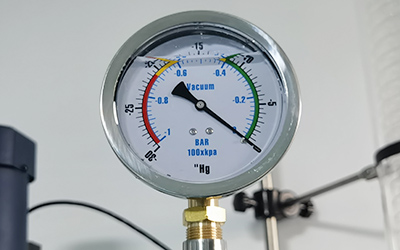

: Oil vacuum meter, anti-vibration during stirring.

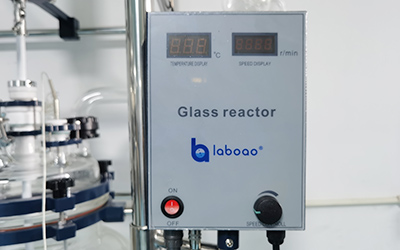

: Speed controller, can adjust speed and display temperture.

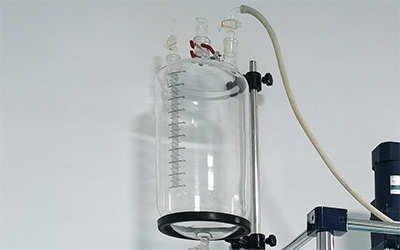

: 10L feeding tank, GG-17 high borosilicate glass.

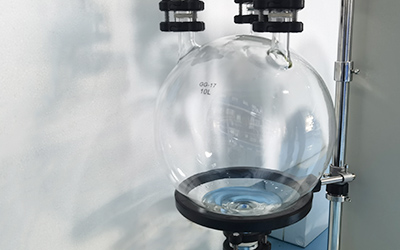

: 10L receiving flask, GG-17 high borosilicate glass.

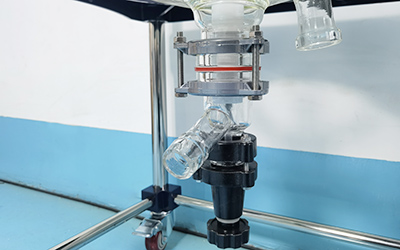

: Discharge valve, easy to discharge materials. PTFE parts for anti-corrosion.

DESCRIPTION

Jacketed Reaction vessels are used for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Reaction Vessels can be used as an all in one tool for extraction, refinement, distillation, and hemoginization.Consisting of an inner vessel with either one or two jackets, a reactor uses temperature differentials created by a chiller to change it's internal environment. Reaction vessels also operate under vacuum making them ideal for any atmospheric sensitive applications. They can be made out of glass and range in volume from 1L to 200L.

FEATURES

1. A full set of glassware with GG3.3 borosilicate glass that is heat/cold/corrosion-resistant.

2. Wide range of temperature operations, from -60°C to 250°C.

3. Solvent-resistant PTFE seal ensure long time durability and operation, sealing is -0.098Mpa.

4. The PT100 temperature, and is a liquid crystal display. More accurate temperature measurement and more convenient.

5. Frequency control, AC induction motor. Constant speed, brushless, no spark, security and stability, and continuous work.

6. Heavy duty stainless steel supporting framework with lockable casters for mobility and stability. (whole support and glass vessel shipped pre-assembled)

7. Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials. multi-layer stirring blades is optional.

8. The bottom flange discharge port with a Teflon value, aluminum parts flange fixed.

SPECIFICATIONS

Model		LGR-200L
Kettle volume		200L， inner diameter 600mm, outer diameter 650mm,inner length 840mm
Jacketed volume		about 40L
Voltage/frequency		220V/50HZ
Stirring power		750W 1/5
Stirring speed		0-280r/min
Temperature range vessel can bear		-80 ℃ to 250 ℃
Temperature accuracy		±1℃
Vacuum degree		0.098Mpa Negative pressure
Cover diameter		Φ340mm
6ports of cover	Stirring port	Φ60mm flange port
	Condenser reflux port	50# ball mill port
	Adding dropwise elbow port	50# ball mill port
	Relief port	34# standard port
	Temperature measure port	Φ45mm flange port
	Solid feeding port	Φ80mm flange port，inner diameter Φ60mm matched with PTFE cover
Stirring paddle		Φ20*1300H(mm), leafing 240mm
Condenser size		Φ160*600H(mm), down with Φ60mm flange port
Condensation area		0.95㎡
Reflux elbow		upper with Φ60mm flange port，left with 50# ball mill plug，right with 24# standard port matched with functional valve, down with 50# ball mill plug valve
Adding dropwise bottle		5L,tubular, upper with 29# standard port matched with vent valve *2, 34# standard port matched with glass plug
Receiving bottle		10L，upper with 50# ball mill port，24# standard port matched with vent valve*2, down with glass baiting valve
Relief valve		34# standard plug valve，vent nozzle (pogada connector), outer diameter 12mm
In and out circulation port of the sandwich		Φ45mm flange port matched with ring flange, 6 points outside the wire adapter
Baiting port		Φ100mm flange，Φ65mm baiting port，inclined discharged port (pagoda connector), Φ40mm，from floor 300mm
Vacuum suction nozzle		padoga connector,outer diameter 12mm
In and out circulation nozzle of condenser coil		padoga connector,outer diameter 15mm
Overall dimension (WLH)		12509302800mm
Net weight		175kg
Packing dimension		2200790875mm， 1385880910mm, 2.63m³
Packing weight		271kg (159+112)
