LGL Series Vertical Forced Air Drying Oven

The electric blast drying box adopts electric heating method to carry out the blast cycle drying test. The blast drying box blows out hot air through a circulating fan to ensure the temperature balance in the box. This is a commonly used instrument and equipment, mainly used for drying samples, and can also provide the temperature environment required for the experiment. Dry ovens are used in various industries, such as chemical, pharmaceutical, foundry, automotive, food, machinery, etc.

ModelLGL Series
MerkLABOAO
HavenAny port in China
PakketPlywood case package

NAVRAAG E-MAIL

Betaling We ondersteunen ook L/C、D/A、D/P、Western Union、MoneyGram、Ontdek betalingen voor offline bestellingen.

DETAILS

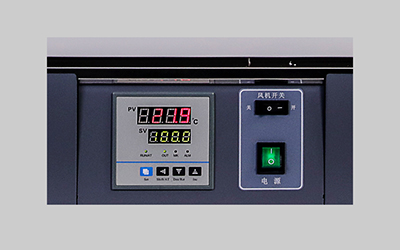

: Multi-function control panel

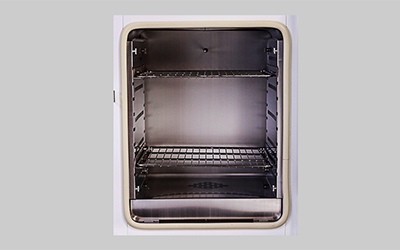

: Multi-layer and multi-space partition design

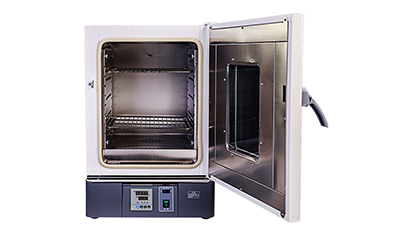

: Double-layer insulated door design

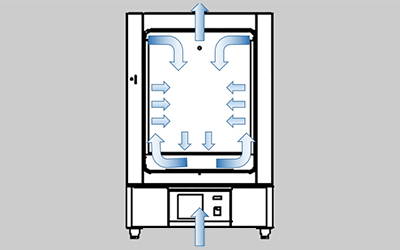

: Vertical double wind channel design

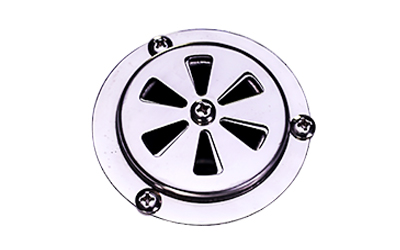

: Vent

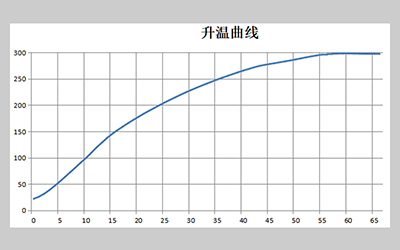

: Heating curve

: Cooling curve

DESCRIPTION

This equipment is composed of chamber body, heating system, electrical control system, air supply system, protection system, etc. The box body is made of high-quality cold-rolled steel plate, and the surface is electrostatically powder sprayed. The coating is hard and firm and has a strong anti-rust ability. The studio is made of high-quality stainless steel plates with rounded corners, smooth, smooth, and easy to clean. Between the box body and the working room, the insulation material is filled, which has a good heat preservation function, which effectively guarantees the stability and accuracy of the temperature in the box and the impact on the use environment.

FEATURES

1. High precision, high efficiency, safety, wide range;

2. Convenient operation, fixed temperature operation, timing function, automatic stop;

3. Dedicated function keys for temperature setting;

4. Auxiliary menu, realize over-rise alarm, deviation correction, and menu lock;

5. Vertical double air duct air jacket, turbo centrifugal forced air supply, more uniform temperature;

6. Adjustable speed fan enables light, small, powdery samples to be used;

7. Forced fan cooling air intake structure, so that the maximum operating temperature of the fan is less than 50℃, and it can run for a long time and long life;

8. Insulated door technology, the outer door has low temperature and does not deform when used under high temperature conditions;

9. Pull-out tray shelf design, convenient and quick to take and place samples.

SPECIFICATIONS

Model	Digital type	LGL-30D	LGL-45D	LGL-65D	LGL-85D	LGL-125D	LGL-230D	LGL-625D
	LCD type	LGL-30L	LGL-45L	LGL-65L	LGL-85L	LGL-125L	LGL-230L	LGL-625L
	Touch screen Type	LGL-30T	LGL-45T	LGL-65T	LGL-85T	LGL-125T	LGL-230T	LGL-625T
Cycle Mode		Double duct forced convection					Bottom duct whirlwind	upper duct whirlwind
Function	Temp. Range	RT+10-300℃
	Temp. Resolution Ratio	0.1℃
	Temp. Motion	±1℃
	Temp. Uniformity	±2.0%
Structure	Inner Chamber	Mirror stainless steel;
	Outer Shell	Cold rolling steel electrostatic spraying exterior
	Thermal insulation material	Aluminum silicate fiber
	Heater	Stainless steel heating tube					Nickel-chromium alloy heating wire	Stainless steel heating tube
	Power rating	0.8kW	1.2kW	1.6kW	1.8KW	2.3kW	3.0KW	5.0KW
	Exhaust hole	φ28mm*1 at the top						φ28mm*2 at the top
Controller	Temp. control mode	D type: Two lines LED display, PID; L type: Two lines LCD display, PID; L type: 5 inch color touch screen fuzzy PID
	Temp. setting mode	Touch button setting
	Temp. display mode	D type: Two lines 4 digits LED Digital display: measuring temp. on the top and setting temp. on the bottom
		L type: Two lines LCD display: measuring temp. on the top and setting temp. on the bottom
		T type: Two lines touch screen display: measuring temp. on the top and setting temp. on the bottom
	Timer	0-9999min(with timing wait function)
	Operation function	Fixed temperature operation, timing function, auto stop.
	Program mode	D/L type is optional, T type single-stage temperature control and program temperature control can be interchanged, 50 experimental programs can be stored, each program can be set with 50 steps, and each step can be set for 0-6000 minutes, adjustable
	Additional function	Deviation correction, menu button lock, power failure compensation, power-off parameter memory; L&T type in addition: Over-rise preventer, adjustable speed fan
	Sensor	Pt100
Specification	Inner Chamber size(WLH)(mm)	310310310	350350350	400360450	450450450	500450550	600500750	6607601250
	Exterior size (WLH)(mm)	428505710	468538753	518550860	567640853	617639953	7356251220	9009601840
	Packing size (WLH)(mm)	552578840	592618880	642628980	692718980	7427181080	8988141347	105110601949
	Volume	30L	45L	65L	85L	125L	230L	625L
	shelf number	2	2	2	2	2	2	2
	Max. optional shelf number	5	6	8	8	11	17	7
	Load per rack	15kg
	Shelf space	40mm					35mm	150MM
	(50/60HZ)Current rating	AC220V/3.6A	AC220V/5.5A	AC220V/7.2A	AC220V/8.2A	AC220V/10.5A	AC220V/13.6A	AC380V/7.6A
optional accessories		Shelf, RS485 interface, printer, recorder, external communication, remote control, program temperature controller, wireless SMS alarm, U disk data storage
