LGL-B Series Vertical Forced Air Drying Oven

The electric blast drying box adopts electric heating method to carry out the blast cycle drying test. The blast drying box blows out hot air through a circulating fan to ensure the temperature balance in the box. This is a commonly used instrument and equipment, mainly used for drying samples, and can also provide the temperature environment required for the experiment. Dry ovens are used in various industries, such as chemical, pharmaceutical, foundry, automotive, food, machinery, etc.

ModelLGL-B Series
MerkLABOAO
HavenAny port in China
PakketPlywood case package

NAVRAAG E-MAIL

Betaling We ondersteunen ook L/C、D/A、D/P、Western Union、MoneyGram、Ontdek betalingen voor offline bestellingen.

DETAILS

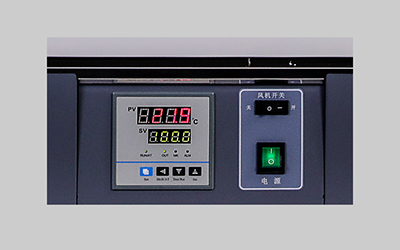

: Multi-function control panel

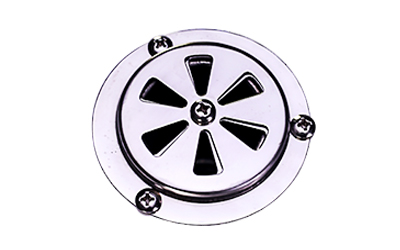

: Vent

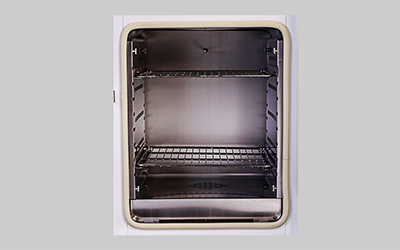

: Design of multi-layer insulation board in multi-layer space

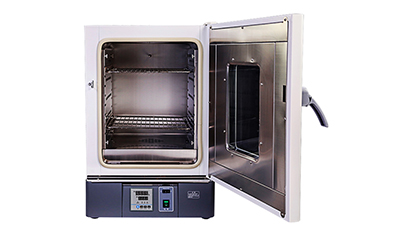

: Double-layer insulated door design

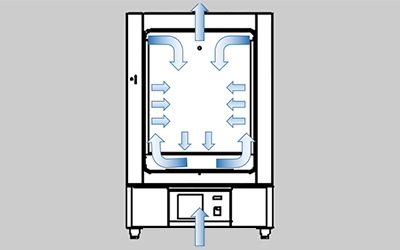

: Vertical double air duct design

: Heating curve

DESCRIPTION

This equipment is composed of chamber body, heating system, electrical control system, air supply system, protection system, etc. The box body is made of high-quality cold-rolled steel plate, and the surface is electrostatically powder sprayed. The coating is hard and firm and has a strong anti-rust ability. The studio is made of high-quality stainless steel plates with rounded corners, smooth, smooth, and easy to clean. Between the box body and the working room, the insulation material is filled, which has a good heat preservation function, which effectively guarantees the stability and accuracy of the temperature in the box and the impact on the use environment.

FEATURES

1. High precision, high efficiency, safety, wide range;

2. Convenient operation, fixed temperature operation, timing function, automatic stop;

3. Dedicated function keys for temperature setting;

4. Auxiliary menu, realize over-rise alarm, deviation correction, and menu lock;

5. Vertical double air duct air jacket, turbo centrifugal forced air supply, more uniform temperature;

6. Adjustable speed fan enables light, small, powdery samples to be used;

7. Forced fan cooling air intake structure, so that the maximum operating temperature of the fan is less than 50℃, and it can run for a long time and long life;

SPECIFICATIONS

Model		LGL-30B	LGL-45B		LGL-65B		LGL-125B
		LGL-30BE	LGL-45BE		LGL-65BE		LGL-125BE
Cycle Mode		Forced convection
Function	Temp. Range	RT+10-300℃
	Temp. Resolution Ratio	0.1℃
	Temp. Motion	±1℃
	Temp. Uniformity	±2.5%
Structure	Inner Chamber	Stainless steel;
	Outer Shell	Cold rolling steel electrostatic spraying exterior
	Thermal insulation material	Aluminum silicate fiber
	Heater	Stainless steel heating tube
	Power rating	0.8kW	1.2kW			1.6kW	2.3kW
	Exhaust hole	φ28mm*1 at the back
Controller	Temp. control mode	B model: Two lines LED display, PID; BE model: Two lines LCD display, PID
	Temp. setting mode	Touch button setting
	Temp. display mode	B model: Two lines 4 digits LED Digital display: measuring temp. on the top and setting temp. on the bottom
		BE model: Two lines LCD Digital display: measuring temp. on the top and setting temp. on the bottom
	Timer	0-9999min(with timing wait function)
	Operation function	Fixed temperature operation, timing function, auto stop.
	Program mode	Optional
	Additional function	Deviation correction, menu button lock, power failure compensation, power-off parameter memory; BE model in addition: Over-rise preventer, adjustable speed fan
	Sensor	Pt100
Safety device		Over temperature sound-light alarm
Specification	Inner Chamber size(WLH)(mm)	310310310	350350350	400360450			500450550
	Exterior size (WLH)(mm)	445487671	485527722	534538822			634628922
	Packing size (WLH)(mm)	570570820	600600857	670620960			7607001060
	Volume	30L	45L	65L			125L
	Shelf number	6	7	9			13
	Load per rack	15kg
	Shelf space	35mm
	(50/60HZ)Current rating	AC220V/3.6A	AC220V/5.5A	AC220V/7.2A			AC220V/10.5A
	NW/GW (kg）	27/32	37/43	43/49			60/66
Accessory	Shelf	2
	Shelf frame	4
optional accessories		Shelf, RS485 interface, printer, recorder, external communication, remote control, program temperature controller, wireless SMS alarm, U disk data storage
