DETAILS

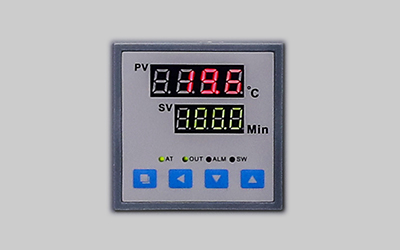

- Multi-function control panel

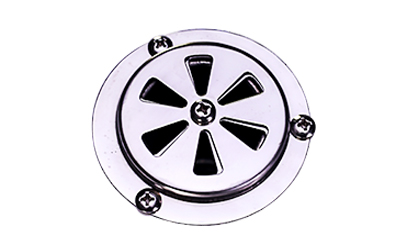

- Vent

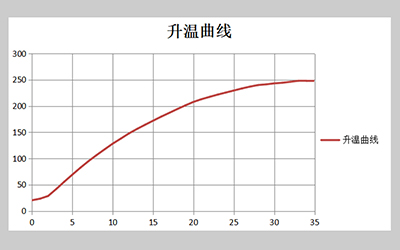

- Heating curve
L101 Series Electric Forced Air Drying Oven
Electric thermostatic drying oven adopts electric heating method to carry out blast cycle drying test. The blast drying oven is to blow out hot air through a circulating fan to ensure the temperature balance in the box. This is a commonly used instrument and equipment, mainly used to dry samples, and can also provide the temperature environment required for the experiment. Dry oven is used in various industries such as chemical, pharmaceutical, foundry, automobile, food, machinery and so on.
- ModelL101 Series
- MerkLABOAO
- HavenAny port in China
- PakketPlywood case package
Betaling
We ondersteunen ook L/C、D/A、D/P、Western Union、MoneyGram、Ontdek betalingen voor offline bestellingen.
DESCRIPTION
This series of products adopts a horizontal box structure, which is small and easy to test and move. It is used for drying, baking, melting, disinfection and sterilization of non-flammable, non-explosive and non-volatile materials in industrial and mining enterprises, universities, biopharmaceuticals, food processing, scientific research, medical units and various laboratories. The desktop blast drying oven adopts a hot air circulation system composed of a fan that can continuously operate at high temperatures and a special air duct, and the temperature in the working room is uniform. It is widely used for drying glassware, heat denaturation, heat hardening, heat softening, moisture removal of experimental samples, food and chemical substances, dry heat sterilization of utensils and utensils in bioengineering, and drying and aging of electronic components.
FEATURES
1. The horizontal air circulation structure is conducive to air mixing, high space utilization, and fast drying rate;
2. Convenient operation, fixed temperature operation, timing function, automatic stop;
3. Dedicated function keys for temperature setting;
4. Auxiliary menu, realize over-rise alarm, deviation correction, and menu lock;
5. Forced fan cooling air intake structure, so that the maximum operating temperature of the fan is less than 50℃, and it can run for a long time and long life.
SPECIFICATIONS
Model | L101-0AB | L101-1AB | L101-2AB | L101-3AB | |||
Cycle Mode | Forced convection | ||||||
Function | Temp. Range | RT+10-250℃ | |||||
Temp. Resolution Ratio | 0.1℃ | ||||||
Temp. Motion | ±1℃ | ||||||
Temp. Uniformity | ±2.5% | ||||||
Structure | Inner Chamber | High quality stainless steel | |||||
Outer Shell | Cold rolling steel electrostatic spraying exterior | ||||||
Thermal insulation material | Aluminum silicate fiber | ||||||
Heater | Stainless steel heating tube; | Nickel-chromium alloy heating wire | |||||
Power rating | 1.2kW | 1.6kW | 2.0kW | 4.0kW | |||
Exhaust hole | φ28mm*2 at the back; Overhead test hole | ||||||
Controller | Temp. control mode | Two temperature section PID intelligent | |||||
Temp. setting mode | Touch button setting | ||||||
Temp. display mode | Two lines 4 digits LED Digital display: measuring temp. on the top and setting temp. on the bottom | ||||||
Timer | 0-9999min(with timing wait function) | ||||||
Operation function | Fixed temperature operation, timing function, auto stop. | ||||||
Program mode | Optional | ||||||
Additional function | Deviation correction, menu button lock, power failure compensation, power-off parameter memory | ||||||
Sensor | Pt100 | ||||||
Safety device | Over temperature sound-light alarm | ||||||
Specification | Inner Chamber size(W*L*H)(mm) | 350*350*350 | 450*350*450 | 550*450*550 | 600*500*750 | ||
Exterior size (W*L*H)(mm) | 652*528*580 | 752*520*676 | 852*572*776 | 861*669*995 | |||
Packing size (W*L*H)(mm) | 775*595*709 | 875*595*812 | 975*695*910 | 1020*804*1102 | |||
Volume | 43L | 71L | 136L | 225L | |||
Shelf number | 9 | 13 | 17 | 21 | |||
Load per rack | 15kg | ||||||
Shelf space | 25mm | ||||||
(50/60HZ)Current rating | AC220V/5.5A | AC220V/7.3A | AC220V/9.1A | AC220V/18.2A | |||
NW/GW (kg） | 33/43 | 40/50 | 53/68 | 77/95 | |||
Accessory | Shelf | 2 | |||||
Shelf frame | 4 | ||||||
optional accessories | Shelf, RS485 interface, printer, recorder, external communication, remote control, program temperature controller, wireless SMS alarm, U disk data storage | ||||||
