A rotary evaporator is an instrument that lowers the boiling point of a solvent by reducing pressure and uses rotation to create a large liquid film on the bottle wall, thus accelerating evaporation. Its main uses are concentrating sample solutions and recovering organic solvents; it is particularly suitable for processing heat-sensitive substances, achieving efficient low-temperature evaporation.
1. 7-inch large touchscreen:Controls functions such as rotation speed, vacuum, liquid replenishment, heating, and lifting. It allows for automated operation programming, with multi-segment control of vacuum level, rotation speed, heating temperature, and timing. Flexible formulation options and easy operation are provided.

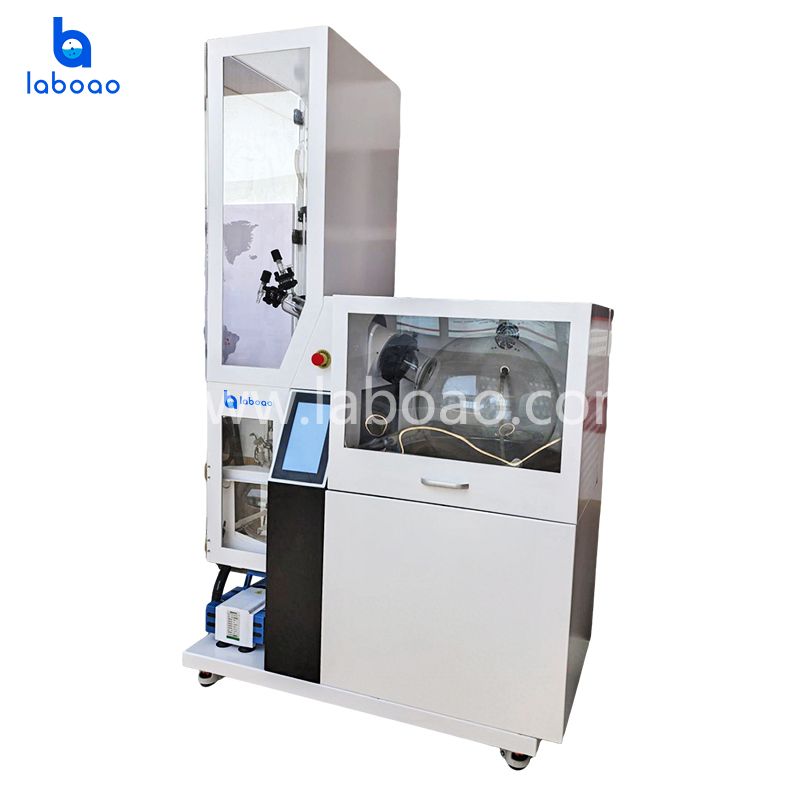

2. High safety: Both the rotating flask and receiving flask are housed within a transparent acrylic protective cover, effectively enhancing safety and preventing accidental injury.
3. Improved lighting system for the water bath and evaporation flask: Provides visual control for the user. An exhaust ion fan prevents condensation within the protective cover.
4. Standard automatic liquid replenishment and drainage system:Automatically replenishes or drains the solution in the bath. A manual drain valve allows for manual drainage in case of power failure.

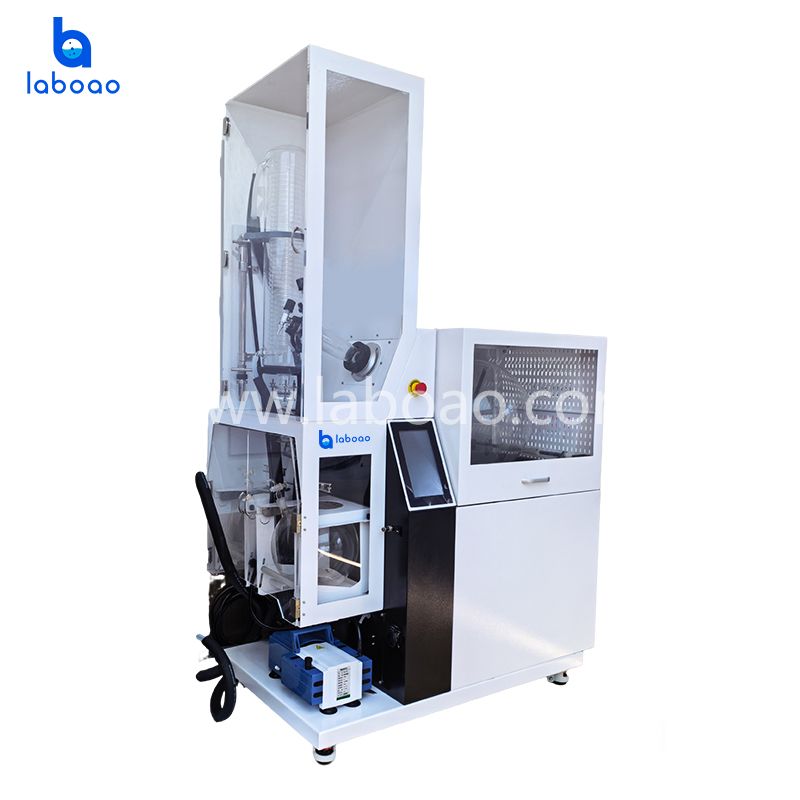

5. Moving base with a small storage area for storing vacuum pumps, glassware, organic solvents, etc.

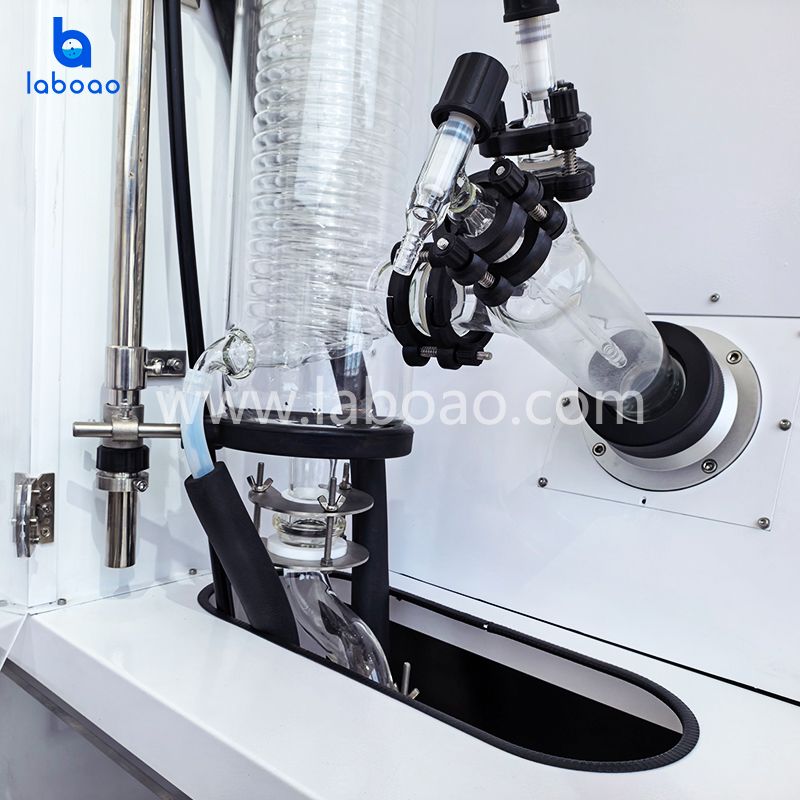

6. Rotating mechanism with electronic and mechanical locking shafts (manual locking for flask retraction in case of power failure).
7. Rotating flask safety door: Can be set to stop rotation when the door is open, or can be set to continue rotation when the door is open from the backend. Flexible operation and high safety are ensured. 8. A movable bottle holder is provided for easy installation and removal of rotating bottles. A return limit function ensures the rotating holder remains in its correct position for normal operation.
9. A vacuum pressure regulating device allows for adjustment of system pressure according to user needs.
10. The program can store data and export it to Excel via USB flash drive (including vacuum, rotation speed, water temperature, and other parameters).
11. Excellent corrosion resistance. All parts in contact with materials are made of high borosilicate glass (coefficient of expansion 3.3) and polytetrafluoroethylene (PTFE), ensuring stable performance and minimal chemical reaction with materials, making it convenient and safe to use.
Model | LRE-2050 |
Display screen | 7-inch touchscreen |
Voltage/Frequency | 380V/50HZ |
Rotary motor power | 60W |
Lifting motor power | 25W |
Heating power | 8000W |
Vacuum level | 0.095Mpa |
Rotary bottle capacity | 50L Φ470mm/Φ125 flange |
Collection bottle capacity | 20L Φ355mm/Upper Φ60 flange × Φ35 flange × 2 × Lower Φ50 flange |
Rotation speed | 0-120rpm |
Heating temperature range | Ambient temperature -180°C |
Heating temperature control accuracy | ±1°C |
Bath pot lifting stroke | 215mm, electric |
Bath pot material | SUS304 |
Bath pot liquid level control | Controlled by a liquid level sensor and an automatic liquid replenishment system |
Steam temperature | Displays steam temperature sensor |
Integrated vacuum controller | Yes |
Timing function | Yes |
Automatic program programming | Yes |
Vacuum control | Yes |

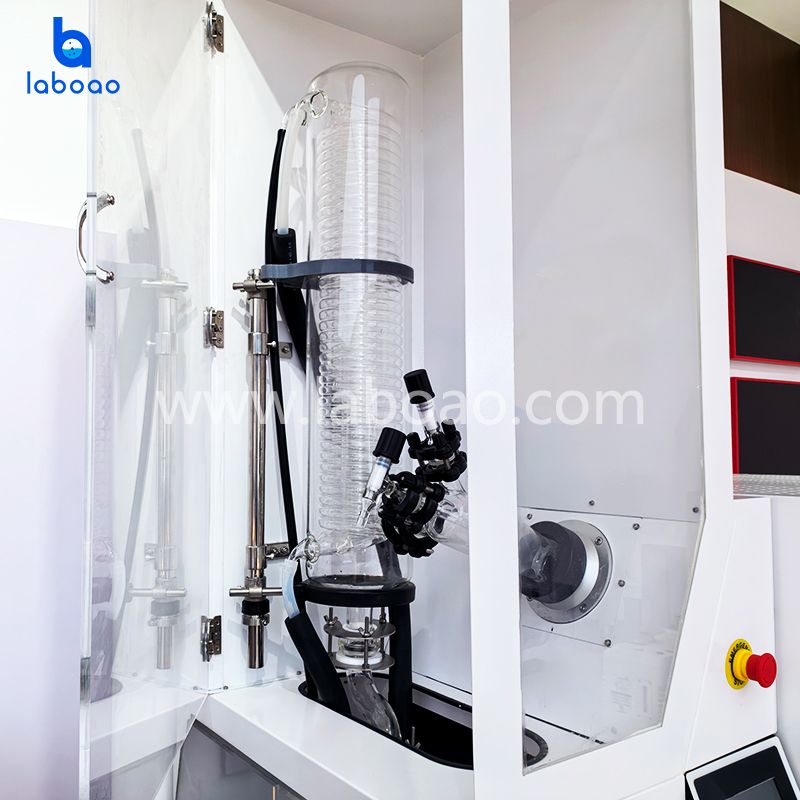

Condenser size | Φ165×950H(mm) Side Φ60 flange opening, bottom Φ60 ball joint |
Condensation area | 1.2m² |
Gas delivery bottle | Left Φ35 flange, top Φ35 flange, side Φ60 flange |
Feeding valve | Φ35 flange, glass + PTFE valve, feed nozzle (pyramid connector) outer diameter 12mm |
Multi-functional port | Φ35 flange, glass + PTFE valve, feed nozzle (pyramid connector) outer diameter 12mm |
Vent valve | Φ35 flange × 2, glass + PTFE valve, vent nozzle (pyramid connector) outer diameter 12mm |
Discharge valve | Φ50 flange opening, side discharge nozzle (pagoda connector), outer diameter 20mm |
Vacuum suction head | Φ60 flange glass exhaust head, exhaust nozzle (pagoda connector), outer diameter 10mm |
Condensing coil inlet/outlet circulation nozzle | Pagoda connector, outer diameter 16mm |
Pot size and capacity | Φ550x320H(mm), approx. 76L |
Overall machine footprint | 1270×700×2050mm W D H |
Machine net weight | 200Kg |
